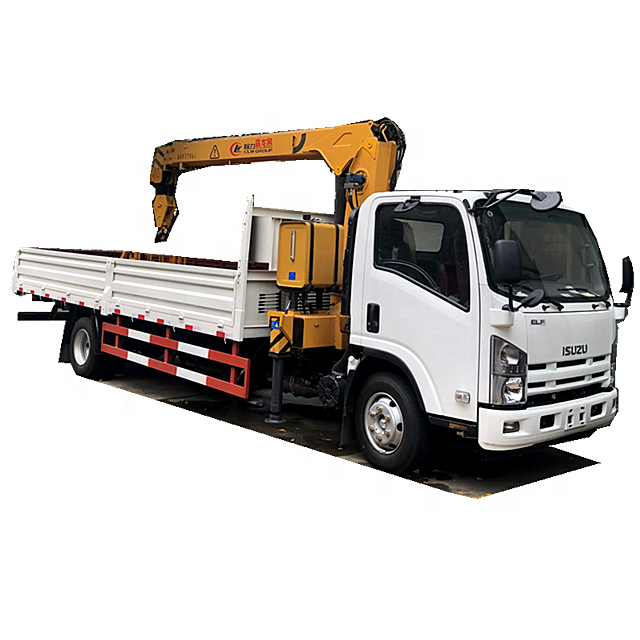

| TRUCK MOUNTED CRANE | ||
| Item | Descriptions | Specifications and types |
| General | Truck Brand | CLW(our brand) |
| Chassis Brand | ISUZU | |
| Approx. Dimension | 6995*2150*2810 mm | |
| GVW./Kerb Wt. | 4495/ 2925kg | |
| Cab | Cab Capacity | 2 persons’ seat |
| Air Conditioner | Air Conditioner is optional | |
| Chassis | Drive Type | 4X2,left hand drive |
| Fuel Type | Diesel | |
| Power | 98hp | |
| Emission Standard | EURO IV | |
| Brake | Air Brake | |
| Wheelbase/No.of axle | 3360mm / 2 | |
| Tyre Specfication | 7.00-16 8PR,7.00R16 8PR | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 80 km/h | |
| Paint | Automative metallic paint | |
| Crane | Max Lifting Capacity | 4000kg |
| Crane Weight | 500kg | |
| Rotation Angle | 360 all rotation | |
| Installation Space | 850-1150mm | |
-
