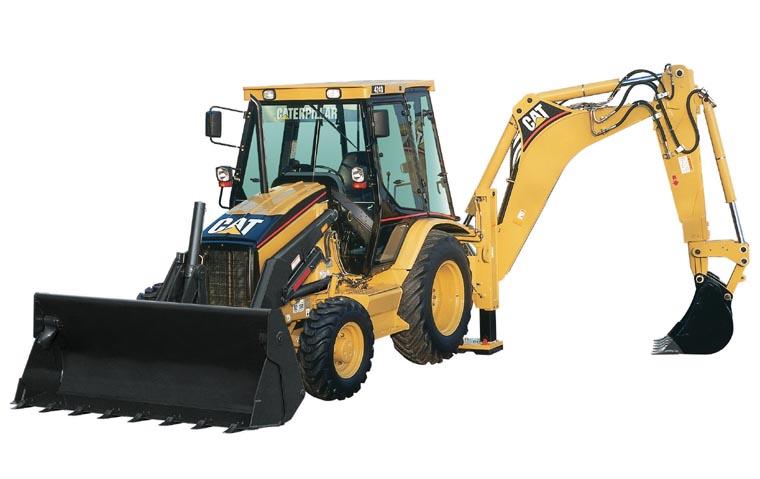

Backhoe
| Bucket Dig Force | 11720 lbs |
| Bucket Dig Force – Extended | 11610 lbs |
| Dig Depth | 16 ft |
| Dig Depth – Extended | 19.4 ft |
| Load Height | 12.2 ft |
| Load Height – Extended | 14.1 ft |
| Reach at Load Height – Extended | 9.1 ft |
| Reach From Swivel | 18.5 ft |
| Reach From Swivel – Extended | 21.9 ft |
Dimensions
| Ground Clearance | 1.1 ft |
| Height to Top of Suspended Cab | 9.6 ft |
| Transport Length | 18.9 ft |
| Transport Width | 7.9 ft |
| Wheelbase | 6.9 ft |
Engine
| Displacement | 256.3 cu in |
| Engine Model | 3054B |
| Gross Power | 77 hp |
| Net Power | 74 hp |
| Number of Cylinders | 4 |
| Power Measured @ | 2200 rpm |
Hydraulic System
| Pump Flow Capacity | 36.8 gpm |
| Pump Type | LSPC, closed center |
| Relief Valve Pressure | 3002.3 psi |
Loader
| Bucket Breakout Force | 8880 lbs |
| Bucket Capacity | 1.3 cu yd |
| Bucket Width | 89.1 in |
| Clearance at Max Dump Height | 8.7 ft |
| Dig Depth | 3.1 in |
| Reach at Max Dump Height | 2.7 ft |
