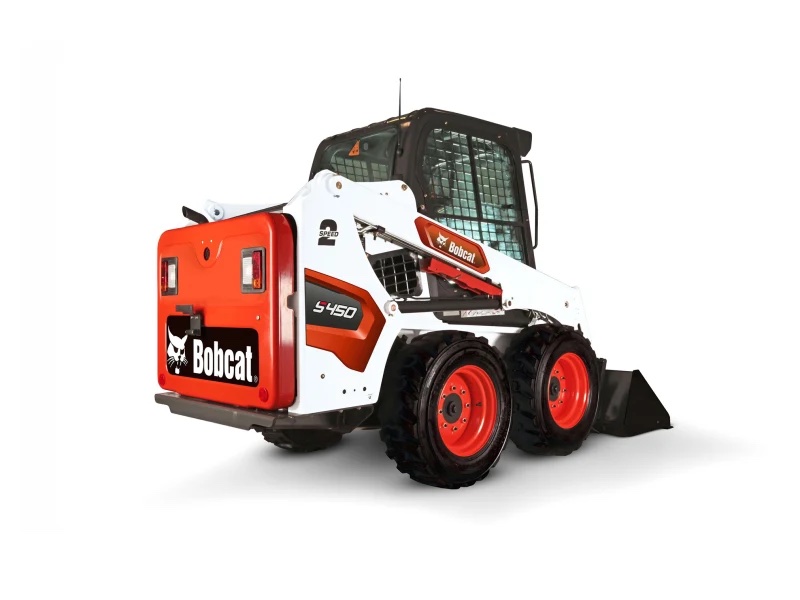

The Bobcat S450 skid-steer loader provides an unmatched combination of power and maneuverability to push through the toughest jobs.
- Superior lift arms
- Leading maneuverability
- All-around visibility
- Premium comfort
Dimensions
| Clearance at Max Lift and Dump | 7.2 ft (2 m) |
| Ground Clearance | 8.4 in (20 cm) |
| Height – Top of Cab | 6.5 ft (2 m) |
| Length w/o Bucket | 8.2 ft (2 m) |
| Length with Bucket | 10.5 ft (3 m) |
| Reach at Max Lift and Dump | 20.8 in (51 cm) |
| Wheelbase | 3 ft (1 m) |
| Width Over Tires | 4.9 ft (1 m) |
Engine
| Aspiration | Turbocharged |
| Cooling system | Liquid |
| Emission Tier Level | Tier 4 |
| Fuel Type | Turbo Diesel |
| Gross Power | 49 hp (37 kw) |
Hydraulic System
| Main pump flow standard | 16.7 gal/min (61 l/min) |
| Relief Valve Pressure | 3300 psi |
Loader
| Bucket Width | 62.1 in (157 cm) |
| Height to hinge pin | 9.2 ft (3 m) |
| Loader Series | M2-Series |
| Operating Load Rating | 1300 lbs (590 kg) |
| Operating Width | 58.6 in (147 cm) |
| Tipping Angle | 2599.3 ° |
Operating Specifications
| Fuel Capacity | 14.4 gal (53 l) |
| Lift Arm Path | Radius |
| Max Speed | 7.1 mph (11 kph) |
| Operational Weight | 5026.6 lbs (2,280 kg) |
